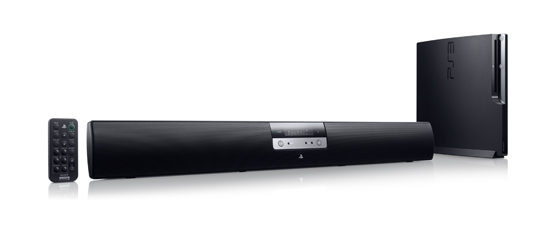

Surround Sound System

The official all-in-one surround sound solution for the PS3™ system.

Surround Sound System

Accessory Details

Specifications

Digital input formats supported by this system
  • Dolby Digital
  • DTS
  • MPEG-2 AAC
  • Linear PCM (2 Ch.)*
* Linear PCM accepts sampling frequencies of no more than 48 kHz.
AUDIO POWER SPECIFICATIONS
Power Output And Total Harmonic Distortion:
(FTC) for the U.S. model L + R:

With 6 ohms loads, both channels driven, from 200-20000 Hz ;
rated 5 watts per channel minimum RMS power, with no more than 1 % total harmonic distortion from 250 milliwatts to rated output.
Amplifier section
U.S. models:
POWER OUTPUT (reference) L / R:
Subwoofer:

Canadian models:
POWER OUTPUT (rated) L + R
POWER OUTPUT (reference) L / R
Subwoofer


10 W (per channel at 6 ohms,1 kHz)
15 W + 15 W (at 8 ohms, 100 Hz)


8 W + 8 W (at 6 ohms, 1 kHz, 1 %THD)
10 W (per channel at 6 ohms,1 kHz)
15 W + 15 W (at 8 ohms, 100 Hz)
Speaker
Front Speaker unit:
Speaker system
Speaker units
Rated impedance

Subwoofer unit:
Speaker system
Speaker Units
Rated impedance


Full range, Bass reflex
50 mm x 90 mm (2 in x 3 5/8 in)
6 ohms


Subwoofer system, passive radiator type
65 mm x 2 (subwoofer) 65 mm x 4 (passive radiator)
8 ohms
General
Inputs
Power requirements
Power consumption

Analog (1), Digital (Optical) (1)
18 V DC (2.6 A) (100 V - 240 V AC, 50/60 Hz using the supplied AC adaptor)
In standby mode: 0.5 W or less
Main Unit
Dimensions (approx.)
Mass (approx.)

28.38 in, 3.38 in, 3.50 in (w/h/d)
2.4 kg (5 lb 5 oz)
AC adaptor
Input
Output
Dimensions (approx.)
Mass (approx.)

AC 100 V - 240 V, 50/60 Hz
DC 18 V, 2.6 A
4.88 in, 2.13 in, 3.32 in (w/h/d)
240 g (9 oz)
